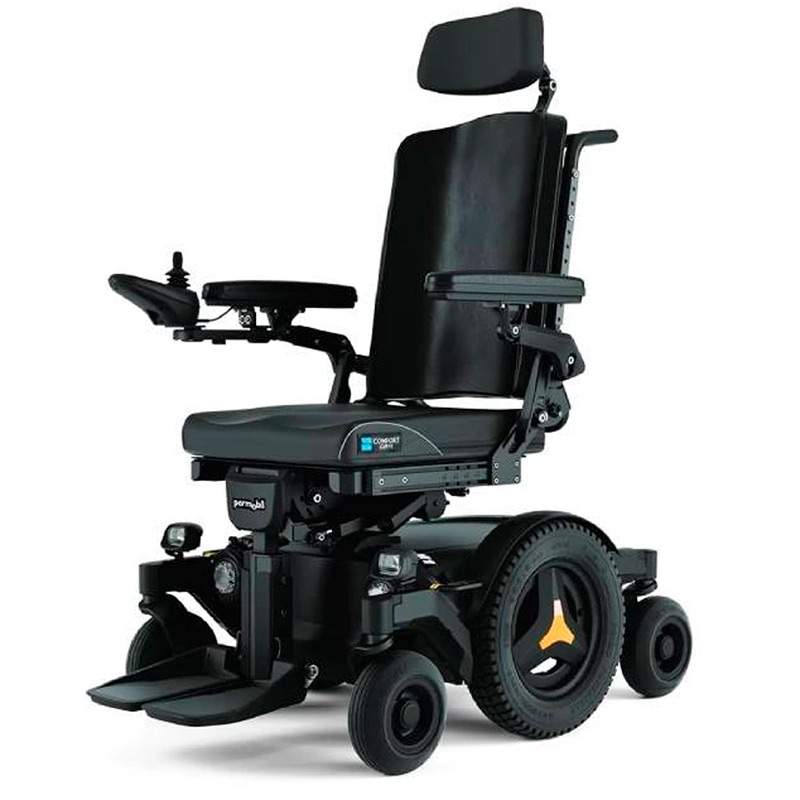

M1 mid-wheel drive wheelchair

The M1 Chair is a reliable power wheelchair with a low seat height, power options, LED lights, folding and lockable armrests, and powered by the Permobil battery system.

Places to go
People to see. The inconveniences of small spaces, low tables and getting into cars will be a distant memory. With the low seat height of just 410 mm, the M1 makes it easy for you to go about your daily activities.

Safer and easier transfers
The low seat height, sturdy and folding armrests with lock, intelligent tilting joystick and removable leg supports aim to make transfers and everyday activities safer and easier.


Greater manageability
The new Permobil battery and Permobil VoltPro charger work together to provide you with up to 25% more driving distance, optimized charging times and longer battery life.

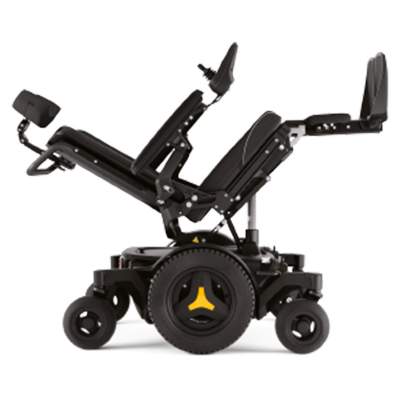

Tilt at the touch of a button
The power tilt option allows the seat to be tilted up to 50° for a resting position or pressure distribution. Tilting can also be used to improve comfort, trunk stability, and head posture.

Comfortable and reliable handling
The Smooth suspension helps reduce vibrations and the low center of gravity with intermediate wheel drive allows you to use comfortably for longer. The adaptive seat adapts to postural or functional changes over time.

Optional power leg support
It offers the possibility to change position easily for greater comfort. It can also contribute to better circulation of the lower extremities.

Adaptive seating
The M1 seating system is a modern version of the traditional rehabilitation seat with a seat that adapts to postural or functional changes over time. You can choose from a variety of seating solutions.

Style.
It has a wide variety of colors and tread enhancement option. Your new Permovil will attract attention.

Technical specifications

  • Max speed: 8 km/h (optional 6 km/h model)
  • Driving range (65 Ah batteries): 40 km*
  • Maximum user weight: 136 kg
  • Climbing obstacles (with boot time): 50 mm (75 mm)
  • Minimum turning diameter: 1120 mm
  • Rotation width: 1100 mm
  • Suspension: Smooth
  • Electronics: VR2 90A (RNET 90A option)
  • Collision test according to ISO 7176-19 – 4 anchor points: Yes, max. 136 kg user weight
  • Tested according to EN12182/EN12184 standards: Yes
  • Max. length incl. seat: 990 mm
  • Base width: 610 mm
  • Width with seat and armrests: 610–790 mm
  • High: 970–1170 mm
  • Storage length/height: 670 mm/820 mm
  • Weight with batteries 65Ah: 144 kg
  • Seat height to floor (without cushion): 410 mm
  • Seat height options (without cushion): 410 mm; 435 mm; 460 mm
  • Seat depth: 360–560 mm (in 25 mm increments)
  • Seat and backrest width: 360–560 mm (in 50 mm increments)
  • Backrest height (without seat cushion) with seat width of 360 mm: 455–640 mm (in 25 mm increments)
  • Backrest height (without seat cushion) with seat width >360 mm: 555–740 mm (in 25 mm increments)
  • Armrest height: 180–360 mm
  • Distance between armrests: 380–480/480–580 mm
  • Backrest angle adjustment (manual): 85°–110°
  • Seat plane adjustment – Anterior/rear inclination: 90° to +140°
  • Electric leg support: 80°–140° (>480 mm seat depth); 90°–150° (≤480 mm seat depth)
  • Folding leg support (with manual adjustment): 100°–115°
  • Central leg support (with manual adjustment): 80°–135°


*Range may vary depending on the weight of the user and whether the wheelchair is frequently used on slopes, rough terrain or for climbing curbs.
