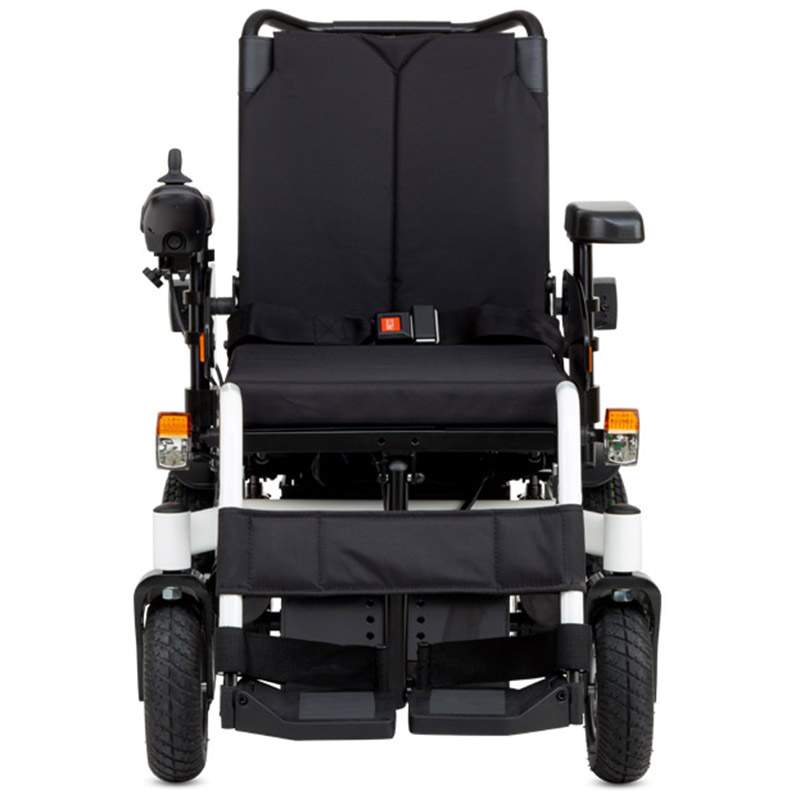

Wheelchair Ejoy RD
Rear-wheel drive power wheelchair
Best performance for standard care
The EJOY RD rear-wheel drive power wheelchair is perfect for outdoor use because it remains stable while driving. Due to its adapted dimensions, it is also suitable for moving indoors. With a standard width of 625 mm and a standard length of 1035 mm, the EJOY RD remains a "manoeuvrable" companion even in small spaces and also fits easily into lifts. With the EJOY RD electric wheelchair you can master turning manoeuvres in narrow aisles effortlessly.
The EJOY RD is designed for long distances. Its range is approximately 35 km. Depending on the engine, the rear-wheel drive electric wheelchair arrives at its destination at a speed of 6 km/h or 10 km/h. The EJOY RD overcomes with solvency slopes of up to 10° and obstacles of up to 50 mm. The maximum load capacity of the electric wheelchair is 140 kg.
With the rear-wheel drive EJOY RD, you will achieve maximum agility and mobility on a day-to-day basis and be able to participate more actively in life. The powerful features of this rear-wheel drive electric wheelchair make it the perfect companion for your adventures.
The powerful indoor and outdoor power wheelchair
The EJOY RD rear-wheel drive powerchair, independently suspended drive wheel drive and spring-mounted chassis provides a high level of stability and traction. The turning range of this rear-wheel drive electric wheelchair is 1170 mm.
Since the power wheelchair rotates outward in the front visible area, it is also very suitable for people with cognitive disabilities or elderly people. The pivot point is behind the user. The center of gravity is located between the drive axle and the steering wheels. This modifies the center of gravity slightly on slopes or descents. When driving uphill, the center of gravity shifts towards the drive axle, improving traction.
The easy-to-operate PG Drive VR-2 driving console is mounted on the right side of the EJOY RD rear-wheel drive electric wheelchair as standard. Its length is adjustable and can be folded.
Maximum comfort and safety in the seat
The stable steel frame of the EJOY RD rear-wheel drive power wheelchair, in combination with the numerous seat and backrest module adjustment options, ensures flexibly adjustable seating comfort. This allows you to individually adjust the angle of the backrest and seat on the EJOY RD. The side panels are adjustable in height and width.
The legrests can be folded down for easy entry and exit. The footrests are adjustable at an angle to support the legs with stability. A comfortable seat cushion ensures maximum comfort even on the longest journeys with the power wheelchair. A seat belt and calf and heel straps provide the necessary stability.
A splash protector on both sides of the power wheelchair protects the user in wet conditions. The lighting of the EJOY RD with rear-wheel drive complies with the traffic regulations.
Smart design and extensive accessories
The attractive modern design of the EJOY RD rear-wheel drive electric wheelchair convinces. The white color gives the steel frame a certain visual lightness. All other parts of the power wheelchair are kept in plain black.
We offer a wide range of configurations and additional accessories for the EJOY RD rear-wheel drive electric wheelchair
WHEELS
- 13" rear wheels (tires)
- 9" front wheels (tires)
- Rear wheel damping
- Rear wheel protective screen
BASIC FEATURES
- Asero chassis
- Armrests adjustable in width, depth and height
- Folding inner and outer footrests, removable
- Angle-adjustable and extendable footrest paddles
- Telescopic seating system
- Seat cushion
- Adjustable seating angle
- Adjustable backrest angle
- Tension-adjustable backrest
DIVERSE
- PG Drive VR-2 JSM-L driver control with light (right-mounted
- Folding and deeply adjustable driver control
- Seat belt
- Skirt
- Anti-roll wheels
- Lighting in accordance with traffic regulations
TECHNICAL DATA
| Ejoy RD | |
|---|---|
| Seat width | 420 – 520 mm |
| Seat depth | 400 – 550 mm |
| Seat height in front (with seat cushion) | 430 – 530 mm |
| Backrest height (without seat cushion) | 480 mm |
| Seating angle | 0° – +20° (manual) 0° – +20° (electric) |
| Backrest angle | 90° – +120° (manual) 100° – +142° (electric) |
| Velocity | 6 | 10 km/h |
| Autonomy | approx. 35 km |
| Surmountable slope | 10° | 17,6% |
| Obstacle height | 50 mm |
| Turning radius | 2130 mm |
| Floor clarity | 65 mm |
| Front wheels | 9" (pneumatic) |
| Rear wheels | 13" (pneumatic) |
| Total width | 620 – 750 mm |
| Total length with footrest | 1070 mm |
| Total length without footrest | 880 mm |
| Total height | 960 – 1090 mm |
| Total weight | 99.5 kg |
| Load capacity | 140 kg |
| Battery | 2 x 12 V | 56 Ah |
| Engine | 6 km/h (2 x 24 V | 350 W) 3000 UPM | 10 km/h (2 x 24 V | 350 W) 5100 UPM |
| Loader | 24 V | 5 A |
| Chassis color | White |
Downloads
Also available in sizes XL and XXL
