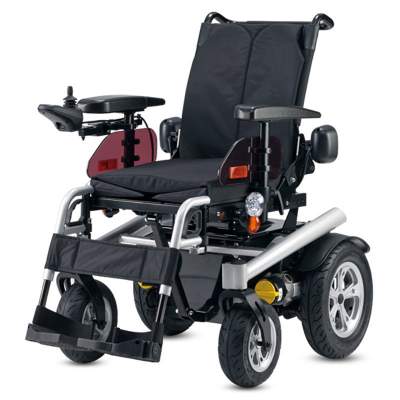

The Taiga wheelchair It is a robust outdoor chair. It is more robust than the others. (strong motor, strong batteries, high charging capacity). It offers greater autonomy and greater capacity for ascent. With its large wheels, Taiga has strength and overcomes uneven terrain with ease. The optional sub-curbs easily overcome obstacles. The wheel fender and the anti-splash of the batteries, allows safe driving outdoors. In addition, all manual options can be converted into electrical options.
WHEELS
- Front wheels 10"
- 14" rear wheels
- PU wheels
- Rear suspension
- Rear fender
BASIC FEATURES
- Adjustable seat width
- Adjustable seating angle
- Adjustable backrest angle
- Armrests adjustable in width and height
- Folding inner and outer footrests, removable
- Angle-adjustable footrest paddles
DIVERSE
- Front and rear reflectors
- Intermittent
- Flip-up PG Drive VR2 driver controller
- Driver's control mountable on both sides
- Width adjustable seat cushion
- Skirt
- Ribbon of calf
- Anti-roll wheels
- Protective anti-splash batteries
- Seat belt
- Toolkit
TECHNICAL DATA
TAIGA | |
---|---|
Seat width | 414 – 615 mm |
Seat depth | 410 – 560 mm |
Seat height | 500 mm |
Backrest height | 530 mm |
Seating angle | -2° to +10° (manual) -2° to +20° (electric) |
Backrest angle | 90° to 120° (manual) 90° to 135° (electric) |
Total width | 670 mm |
Total height | 1040 mm |
Full length | 1200 mm |
Total weight | 121 kg |
Load capacity | 170 kg |
Velocity | 6 km/h |
Autonomy | approx. 35 km |
Surmountable slope | 10° | 17,6 % |
Turning radius | 1620 mm |
Obstacle height | 50 mm |
Engine | 2 x 24 V | 600 W |
Battery | 2 x 12 V | 80 Ah |
Loader | 24 V | 8 Ah |
Front wheels | 10" (PU) |
Rear wheels | 14" (PU) |
Chassis color | Silver |
Base price | 8.729,00 € |
