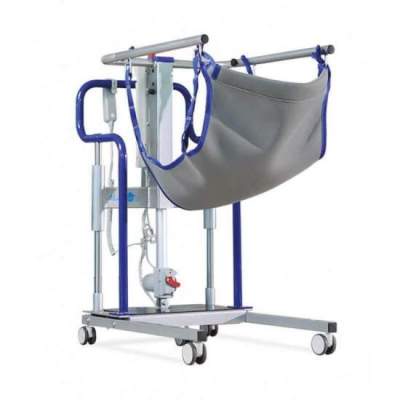

Lifting and transfer crane for people with reduced mobility in a comfortable and safe way.
Its design and quality guarantee maximum comfort.
The horizontal arms are removable.
Includes button for emergency stop.
The battery is removable and rechargeable.
Electric leg opening.
Equipped with 5 swivel wheels, the two rear ones with brake.
Includes harness.
The maximum user weight is up to 135 kg.
Very easy to use and handle.
The crane of lifting and transfer RI900 is of the brand Moretti Iberica Spain.
CHARACTERISTICS
The RI900 crane is lifting and moving and can move the person with reduced or limited mobility to any place.
The opening of legs is electric, in the same way so is the height adjustment, which means that the person who handles the crane has to make the minimum effort.
The battery is removable and rechargeable with charge level indication.
The horizontal arms are removable with 4 harness hooks.
Includes emergency stop button.
Made of painted steel with 5 rotating wheels, the two rear ones with a brake, which facilitates the movement of the crane.
Includes a standard harness.
We can not forget that for the first use it is recommended to charge the batteries approximately 6-8 hours. Make sure the battery is charged before each use.
TECHNICAL DATA
The crane has a height to the handlebar of 100 cm.
The height from the ground to the base of the wheels is 12 cm.
The electrical height regulation is from 85 to 115 cm.
The electric opening of the legs is from 50 cm to 75 cm.
The total depth of the RI900 crane is 95 cm.
The total weight of the crane is 59 kg, with a maximum weight supported up to 135 kg.
CLEANING
To clean the slings and structure, use a solution of alcohol and neutral soap in equal parts mixed with water.
ACCESSORY

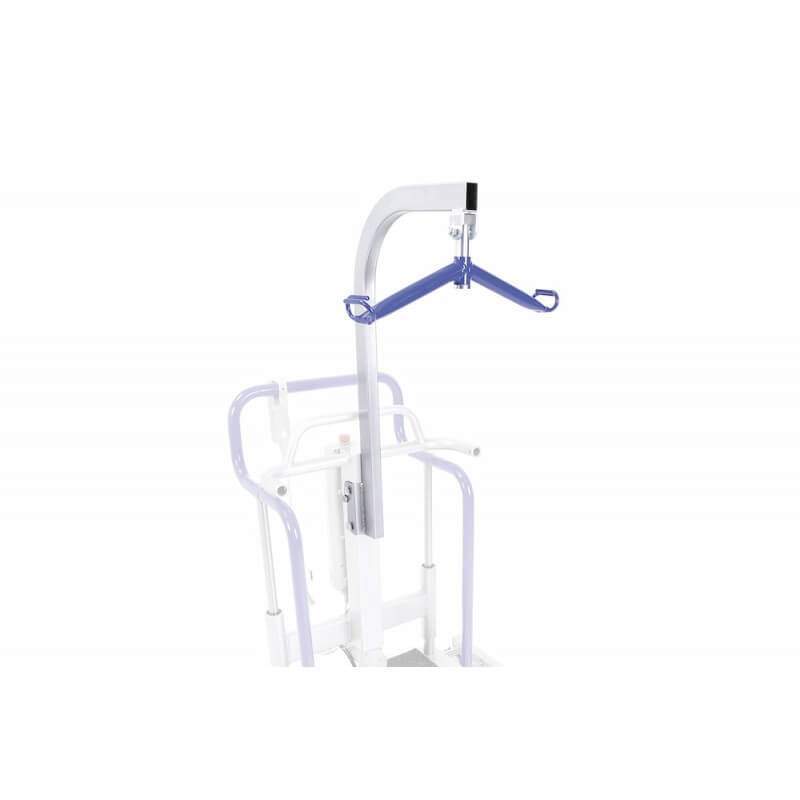

This crane has as an accessory a lifting arm.
It is installed in the central carrier column.
Having a measure d height from the ground to the perch of 125 -155 cm and the maximum height it reaches is 147 to 177 cm.
To optimize the use of this accessory we must remove the lifting semi arms by unscrewing the knobs and removing the semi-arm, this allows people who handle the person with reduced mobility a better management, either for the displacement of this as for any operation that must be performed.
Sheet
- Maker
- Moretti Spain
- Code
- RI900
- Total width
- 83 cm
- Total length
- 95 cm
- Maximum user weight (Kg)
- 135
- Wide open legs
- 75 cm
- Wide closed legs
- 50 cm
- Type of crane
- Transfer
