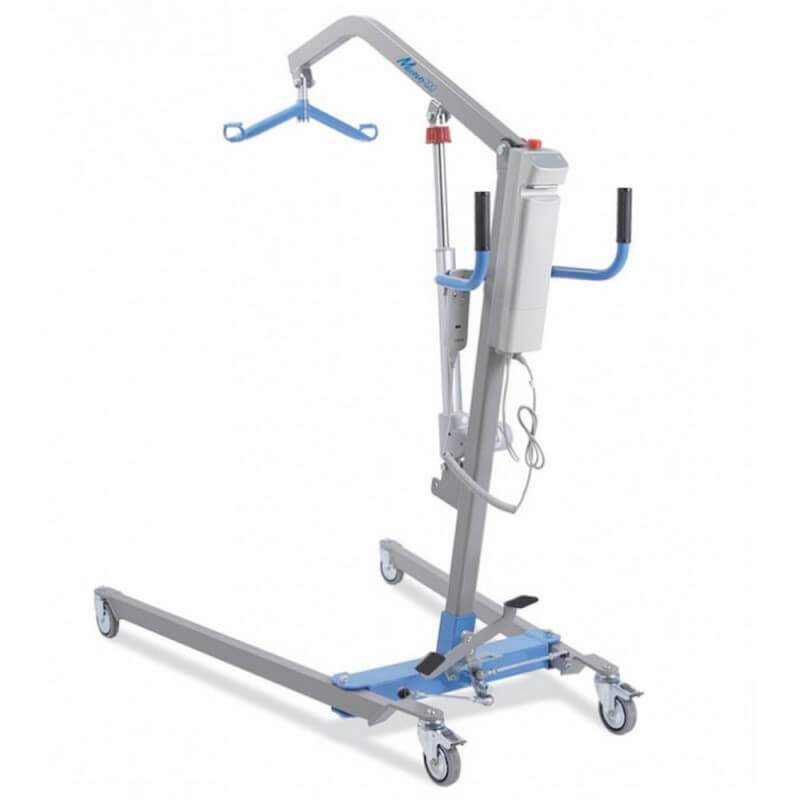

Electric crane transfer up to 200 Kg harness included
Transfer and lifting crane for home use due to its small dimensions.
Maximum user weight up to 200 Kg.
Harness included.
4 swivel wheels and 2 with brake.
Emergency stop button.
2 handles to move it easily and effortlessly.
Designed for people with reduced mobility.
Optional assembly throughout Spain
We have installation service and upload to plant of your crane geriatric throughout Spain
Just worry about making the purchase, we take care of the rest :)
This RI826 transfer crane is from the house Moretti Iberica Spain.
PROPERTIES
Crane designed for homes, hospitals, geriatrics, residences .. that facilitates the transfer and lifting for people with reduced mobility of up to 200 Kg without any problem and with minimal effort.
Made of a resistant steel.
It has a mechanism that allows you to open the legs of the device by means of a lever with safety lock.
Equipped with 4 wheels facilitating the movement of it, two of them with brake.
This crane makes the transfers of people with limited mobility from one site to another are carried out in a safe comfortable way.

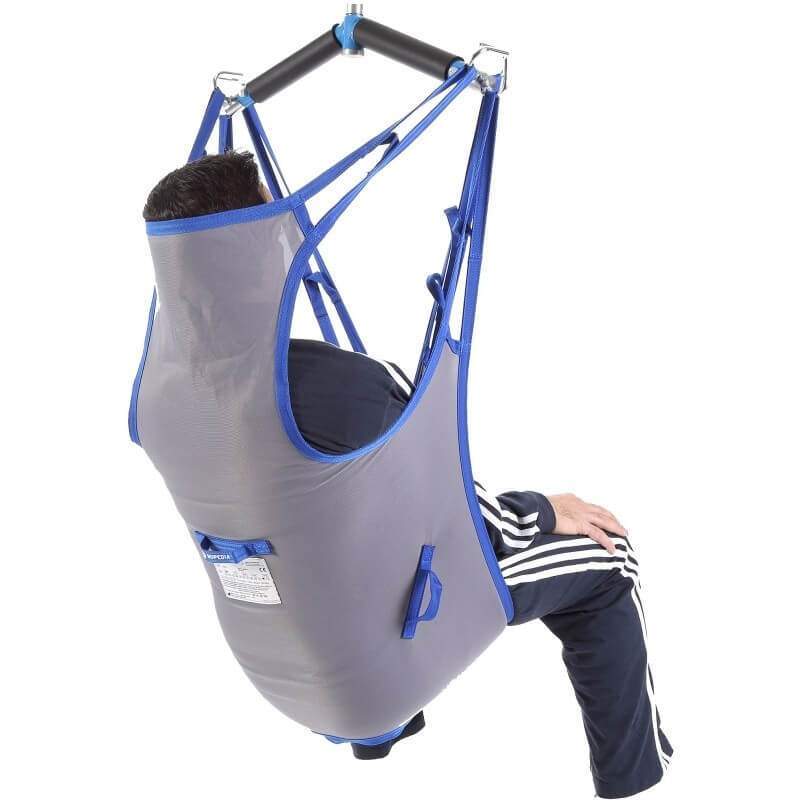

It includes standard harness that holds the entire body firmly and reliably.
MEASUREMENT
This crane has the following dimensions:
The total height is 179 cm and the total length is 126.5 cm.
The measure of the closed legs is 63 cm and the inside of the closed legs is 53 cm, being the measure of the open legs of 99 cm and the open inner is 89 cm.
The height of the wheels is 8 cm and the total height of the base to the ground is 13 cm.
The length of the movable arm is 73 cm.
The distance from the height of the maximum hanger to the minimum height is 97 cm.
The height of the minimum perch to the ground is 82 cm.
The maximum user weight supported is up to 200 kg.
STANDARD HARNESS MEASUREMENTS
The dimensions of this standard harness is a total length of 143 cm and a total width of 80 cm.
The length of the back is 93 cm and the legs 35 cm.
The height of the headrest is 46 cm.
It is a crane that facilitates the transfer and lifting of people with little or no mobility.
Sheet
- Maker
- Moretti Spain
- Code
- RI826
- Total width
- 63 cm
- Total length
- 126.5cm
- Maximum user weight (Kg)
- 200
- Maximum height hanger
- 179 cm
- Wide open legs
- 99 cm
- Wide closed legs
- 63 cm
- Type of crane
- Transfer
