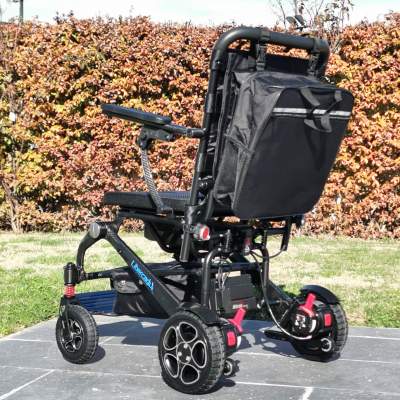

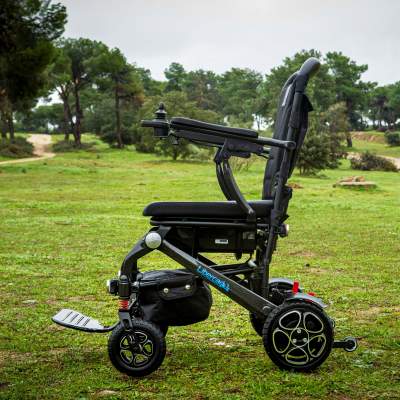

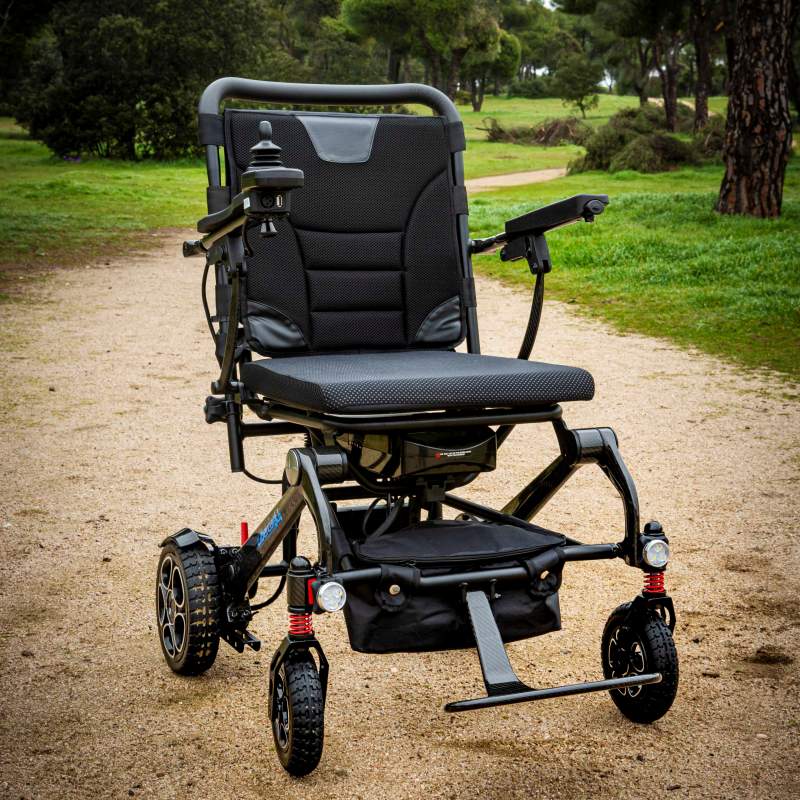

Libercar Alma, the first electric chair with a carbon fiber chassis
Alma chair, the first ultra-light electric chair on the market with a carbon fiber chassis. Carbon fiber is 2 times lighter than aluminum and at the same time 5 times harder than steel
The first ultra-light electric chair on the market with a carbon fiber chassis. Carbon fiber is 2 times lighter than aluminum and 5 times harder than steel. This material is highly valued for its excellent properties, high durability and elegant appearance. In addition, Libercar Alma has a lithium battery (10Ah / 20Ah) that together with its carbon fiber chassis will provide an ultralight weight (structure 18kg, battery weight: 1.8-2.2kg).
It has high performance: 2x250W brushless motors (brushless), speed 8km / h, maximum autonomy of 26km, integral damping, front and rear LED lights, memory foam seat, digital joystick with 5 speeds and progressive intensity ...
A modern design, state-of-the-art technology and maximum comfort and robustness
ULTRA LIGHT, COMPACT AND TRANSPORTABLE:
- Carbon fiber chassis and lithium battery
- Chair frame weight: 18kg Removable battery weight: 1.8kg 2.2kg
- Brushless motors: 2x250W
- Lithium battery: 10Ah 20Ah
- Speed max. 8km / h
- Autonomy max. 26km
- Integral damping, lights, v seatischoelastic
- 5 speed digital joystick Progressive intensity
MODERN AND COMFORTABLE DESIGN
MAXIMUM ROBUSTNESS AND SAFETY:
- Maximum recommended weight 135kg
Carbon fiber is a highly valued material in today's industry thanks to its excellent mechanical properties.
Initially used exclusively in avant-garde applications for aeronautics and high competition sports, its applications have been extended to different sectors, being Libercar Alma the first electric wheelchair with a carbon fiber chassis.
2x lighter than aluminum - 5x harder than steel
Ultra light weight and exceptional strength
Greater resistance to impacts and vibrations
Tolerance to temperature variations
High flexibility and resistance to fatigue
Resistance to humidity and corrosion
Great durability and elegant appearance
LAST-GENERATION BRUSHLESS ENGINES
Brushless motors employ modern technology where power transfer switching is performed electronically with position sensors, which avoids brush friction problems and provides numerous advantages
- High performance and higher power
- Compact and lightweight
- Longer battery life
- Less wear and tear and longer life
- Quiet, heat-free operation
- Low energy consumption
- Electronic speed controller
- Do not require maintenance
ULTRA LIGHT: The lightest chair on the market. It only weighs 18kg !!!
- Compact and maneuverable
- 59cm width to go through all doors.
- 66cm minimum length to fit all lifts.
- Joystick with progressive intensity for precise driving.
- Telescopic anti-roll wheels
- Possibility of manual push
FOLDING AND ADJUSTABLE FOOTREST
The special curvature of the chassis and the ergonomic folding of the footrests at 120º allow the platform to be retracted 20cm to the height of the seat, freeing up the access area and making it as easy as possible to approach the chair to get on and off it.
Height-adjustable footrest for greater user comfort
QUICK RELEASE FOLDING ARMRESTS
The armrests are foldable to facilitate transitions and approaches to tables.
With safety lock and quick release system
FRONT AND REAR LIGHTS
Energy efficient LED lights
They help to see and be seen.
4 modes: bright light, light ahorro, flashes and strobe.
It also has reflective front and rear.
2x250W brushless motor
Lithium 1x10Ah / 1x20Ah
Speed max. 8 km / h
Carbon Fiber Chassis
Autonomy max . (depending on battery) 13km / 26km
Joystick with digital display YES
Chair frame weight 18 kg
Lithium battery weight (ud) 1.8kg / 2.2kg
Front shock SI
Rear cushion YES
Viscoelastic seat YES
Anti-perspirant backing YES
Battery charge by joystick YES
Independent battery charging YES
Front and rear lights YES
Maximum recommended weight 135 kg
Length (telescopic wheels) 86cm - 94cm
Length with footrest folded 66 cm
Width 59 cm

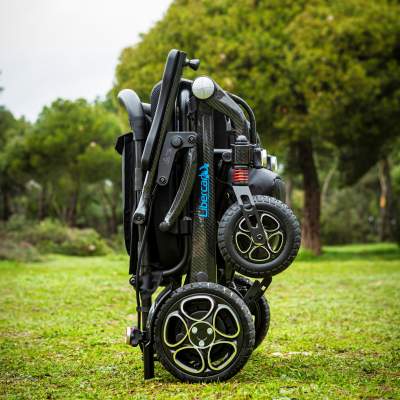

Chair length folded 35 cm
Height 95 cm
Chair height folded 71 cm
Seat width between armrests 47 cm
Seat depth 42 cm
Seat base height 52 cm
Right / left-handed adaptable YES
Maximum slope 18%
Safety slope 12%
Folding up footrest YES
Aluminum rims YES
Footrestremovable (with screw) YES
Reverse speed 3 km / h
22 cm anti-puncture rear wheel
19 cm anti-puncture front wheel
Folding armrests YES
Progressive joystick intensity YES
Jostick removable quick release SI
Seat belt YES
Push bar YES
Object holder case SI
Back pocket YES
Kickstand and stand up system SI
No. of gears 5
Passenger position joystick YES (optional)
CE certificate for medical device CE 93_42 Standards ISO9001 and ISO13485SIESPECIFICATIONS
