Tram mobility device

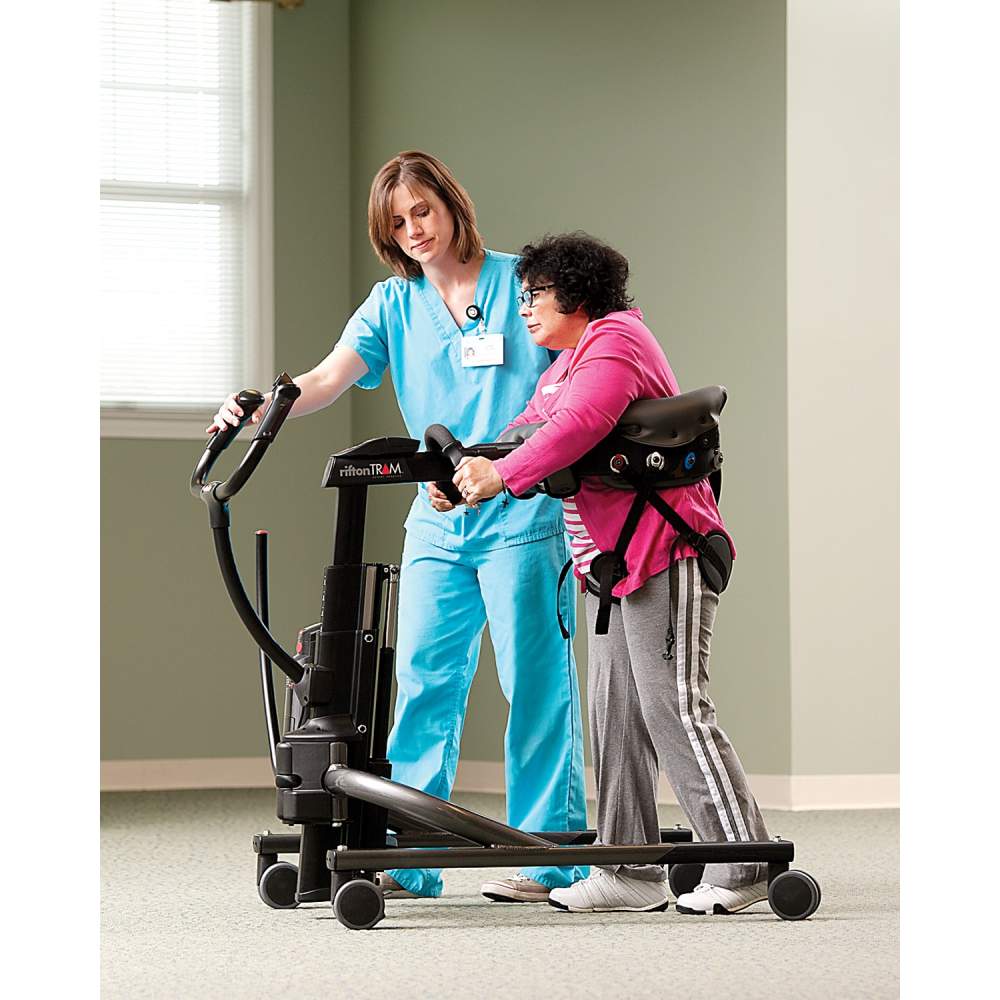

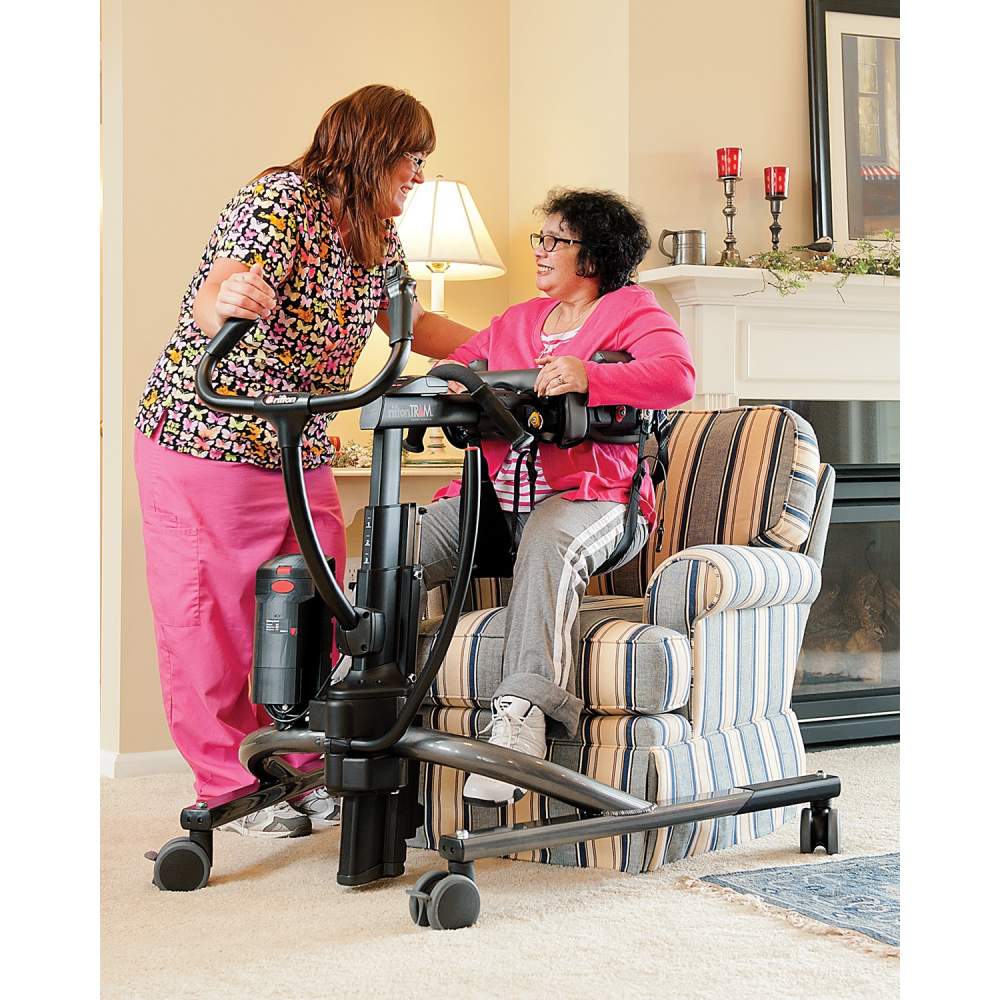

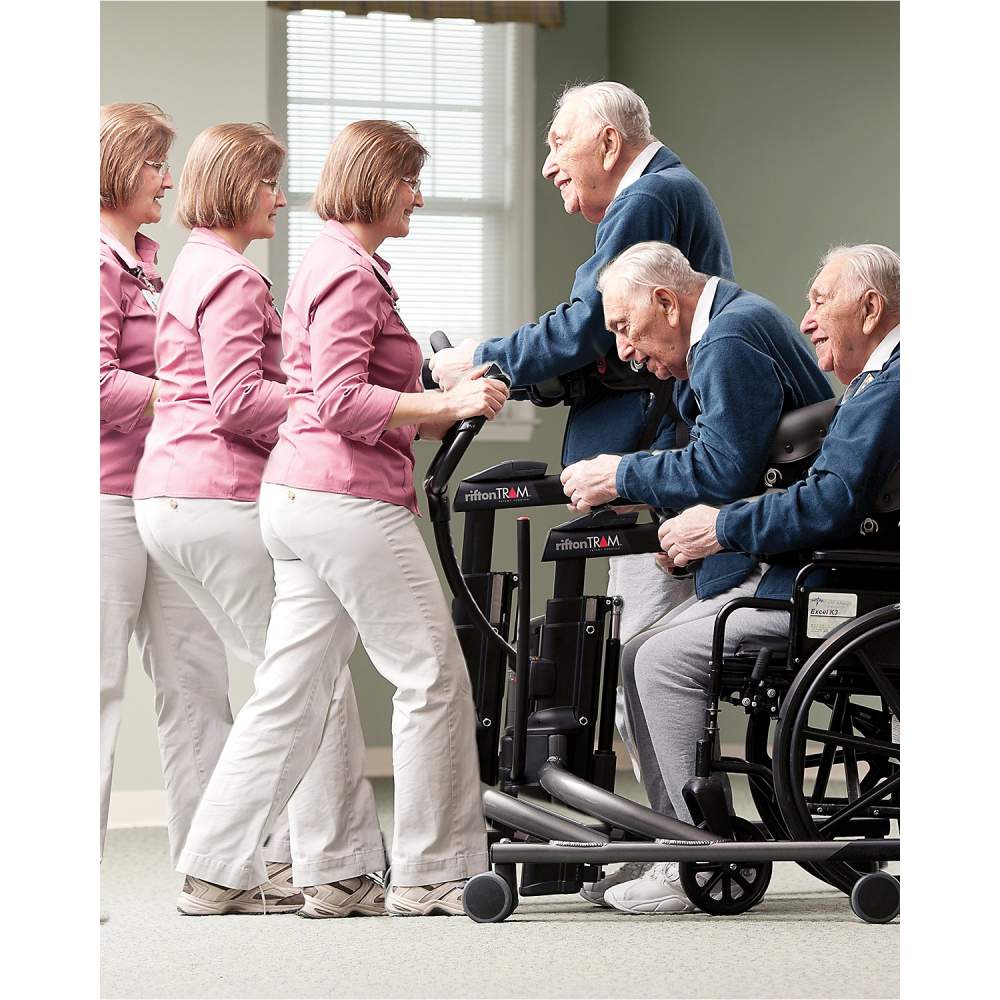

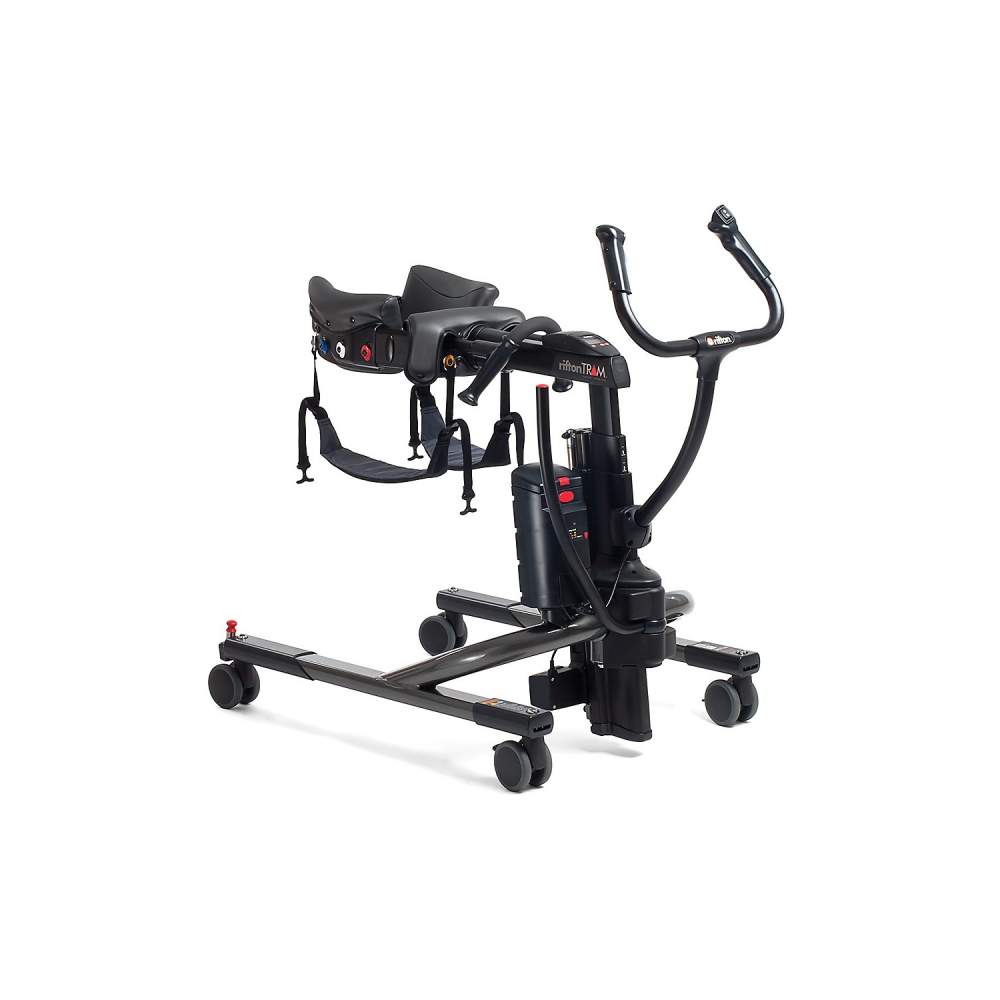

Tram is a mobility device that combines the transfer of sitting or standing (lift), assisted standing and walking for all patients. Intuitive for caregivers and perfect for a safe working environment.

TRANSFER AND MOBILITY

Tram is a mobility device that combines the transfer of sitting or standing (lift), assisted standing and walking for all patients. Intuitive for caregivers and perfect for a safe working environment.

It features an innovative support system that ensures the patient with a simple buckle. This simplicity (without sling) allows a single caregiver quickly prepare the patient for a safe transfer.

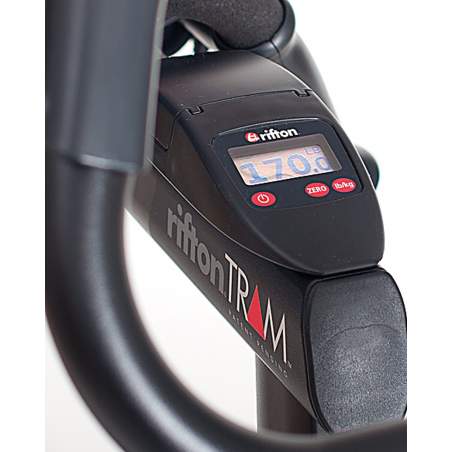

It offers an optional integrated scale that allows the caregiver to easily weigh the patient during transfer and support supported during ambulation.

TRAM up and down. One-button integrated in the handle and telescopic lifting column provides patients with safety eye contact with the caregiver.

Caregivers can quickly connect the metal rings in one of four color-coded clips. The clips are color coded for quick, safe and positive identification anchor.

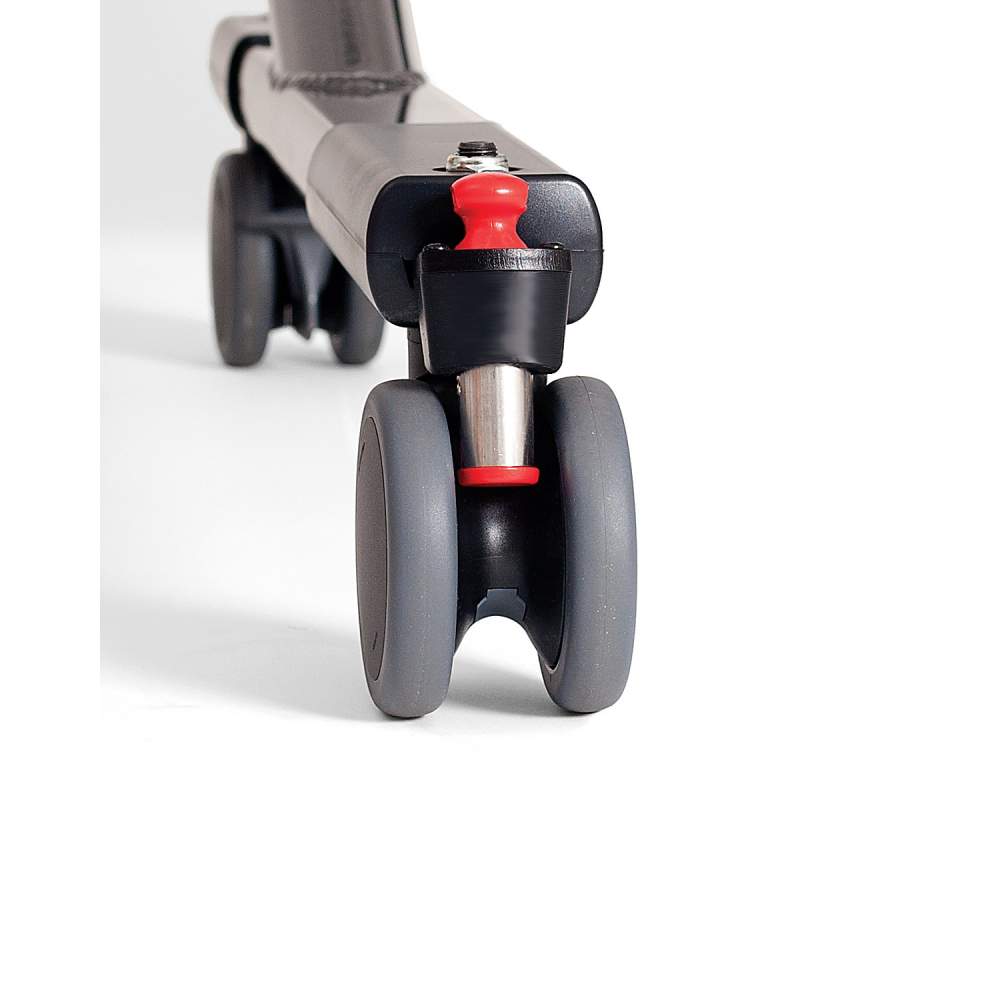

Available in standard and Low-base basis for access anywhere. The standard base has a height of 17.5 cm and legs Low-base legs has a height of 10 cm to access the lower beds.

TRAM was awarded the Medical Design Excellence Award 2013 award.

  • Crane truck with wheels
  • Innovative support system
  • Pairseated transfers
  • Asisitda provides ambulation

TABLE OF MEASURES (length in cm and weight in kg)

STANDARD LOW-BASE
TOTAL LENGTH 116 116
TOTAL WIDTH 70-102 70-102
OVERALL HEIGHT 110-147 110-147
Turning circle 127 127
HEIGHT FROM THE FLOOR TO TOP OF THE BASE 17.5 10.5
Minimum height from floor to ARMPIT 77 77
HEIGHT OF GROUND TO ARMPIT 193 193
WEIGHT 32 32
MAXIMUM LOAD 160 160
