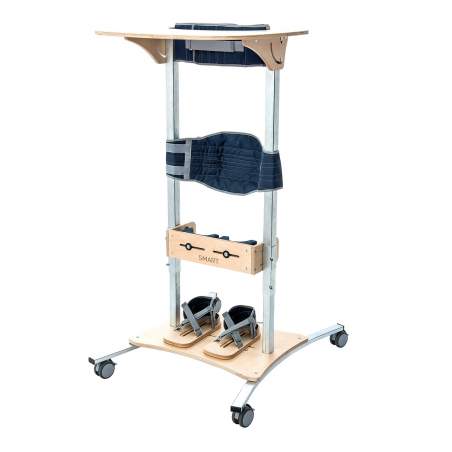

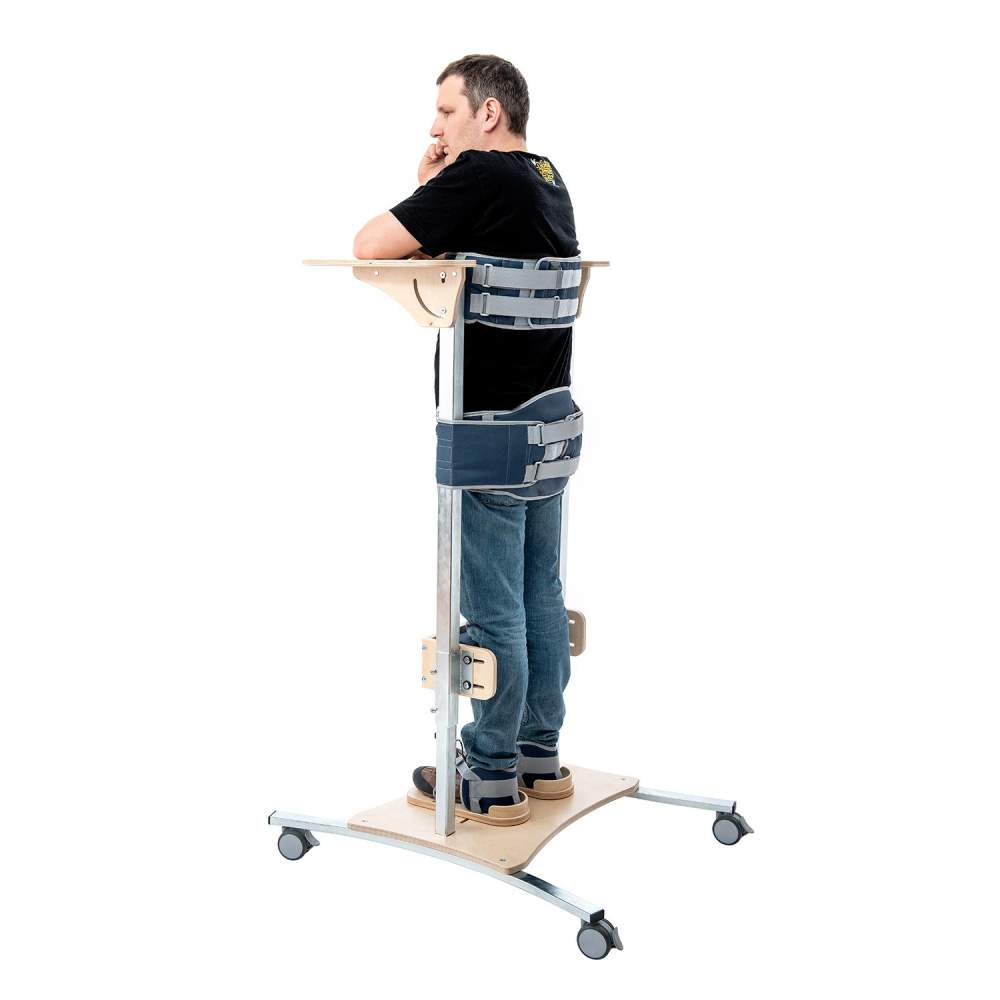

Smart Standing Frame

The new Smart is more modern, made with high-quality materials and provides greater stabilization.

THE NEW STANDING

The new Smart is more modern, made with high-quality materials and provides greater stabilization.

The innovative UPRIGHT-PRO system improves positioning when standing.

  • Wheeled chassis with brakes
  • Base with foot stabilizer
  • Knee supports
  • Pelvic belt
  • Abdominal belt
  • Tray

MEASUREMENT CHART (Length in cm and weight in kg)

Size 1 Size 2 Size 3 Size 4
PELVIC SUPPORT WIDTH 22 27 37 44
PELVIC SUPPORT DEPTH 6 – 14 8 – 18 10 – 24 12 – 30
CHEST SUPPORT WIDTH 20 25 35 42
CHEST SUPPORT DEPTH 8 – 18 8 – 22 8 – 26 12 – 32
DISTANCE BETWEEN KNEE SUPPORTS 9 – 11 10 – 14 14 – 20 17 – 25
CHEST SUPPORT HEIGHT 55 – 75 70 – 96 87 – 121 107 – 147,5
CHEST SUPPORT CIRCUMFERENCE 47 – 63 60 – 78 77 – 97 90 – 116
OVERALL HEIGHT 68 82,5 101 121,5
OVERALL WIDTH 50 60 70 77
OVERALL DEPTH 62 70 87 91
MAXIMUM LOAD 35 KG 55 KG 75 KG 95 KG
WEIGHT 9,5 KG 12 KG 20 KG 25 KG
