• On sale!
Crane Sunlift Micro electric (130Kg.) - The most compact transfer crane in the range, ideal for domestic use. The Micro patient lift and lift crane is surprising for its small size, and convinces because it is very...

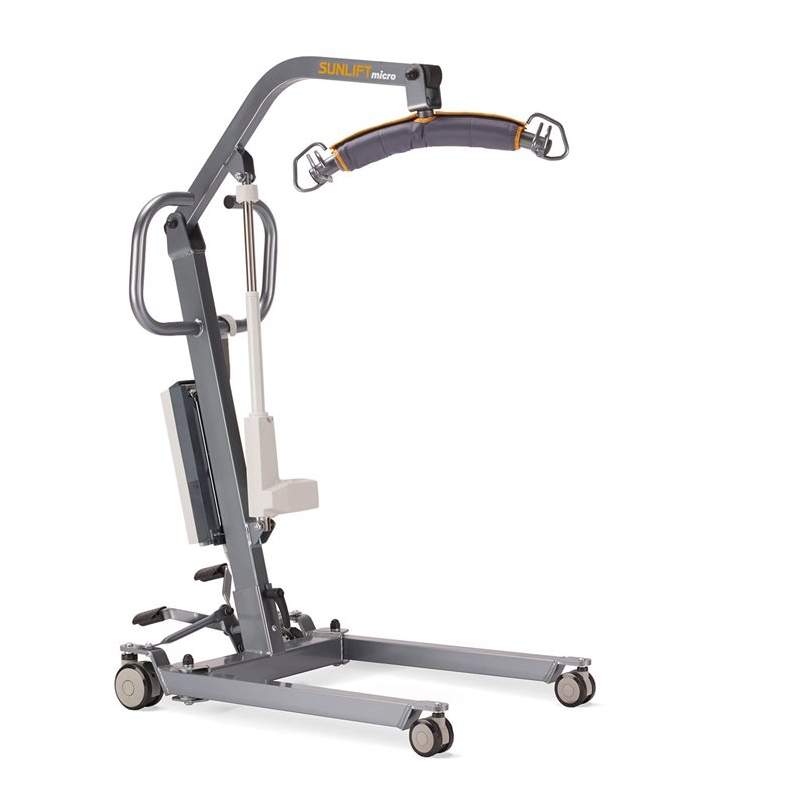

Crane Sunlift Micro electric (130Kg.)

Crane Sunlift Micro electric (130Kg.)

The most compact transfer crane in the range, ideal for domestic use. The Micro patient lift and lift crane is surprising for its small size, and convinces because it is very easy to use inside the house.

Sending, please wait...

Your question has been sent! We'll answer you as soon as possible.

Sorry! An error has occurred sending your question.

Crane Sunlift Micro electric (130Kg.)

3 Reviews
€880.00
Tax included Delivery: 1 to 2 weeks (Europe)
Sunlift Micro
The most compact transfer crane in the range, ideal for domestic use. The Micro patient lift and lift crane is surprising for its small size, and convinces because it is very easy to use inside the house.

The compact design of the legs makes it the ideal domestic crane, and its high lifting range in a very versatile crane since it allows lifting a person from the ground and raising it to the bed.

130 Kg of maximum weight of elevation
Lifting capacity up to 1,590 mm
Minimum height of the hanger 350 mm

Micro Features

Are you looking for a transfer crane that is compact but at the same time capable of responding to the needs of domestic care? Sunlift Micro will be your best ally, because it is the most compact of the range of SUNLIFT lifting cranes.

Its small dimensions allow you to move it comfortably from one room to another or move between the furniture without problems. And when it comes to carrying out transfers, you have its wide elevation range. The hanger descends to 350 mm and rises to 1,590 mm, allowing a person to be raised from the ground and lifted to the bed in total comfort. It is also approved for use with users up to 130 kg.

We understand safety as a key factor in this type of product. That's why all Sunlift crane hangers have crossed hooks to prevent the harness strap from coming loose. You can check at any time the level of battery charge in the indicator, and a sound will warn you when it reaches 50% of its capacity, so you do not haveSo worry about nothing else. And the simplicity of use has been another aspect that we have taken into account in the design of the Sunlift Micro transfer crane.
And if you need a larger crane or with a higher lifting capacity, do not miss the other models available within the range of hospital cranes and SUNLIFT transport.

Maximum security

This domestic crane has hangers with hooks that cross to prevent the harness strap from being released, a battery level indicator, and an acoustic warning when it reaches 50% of its capacity. It also allows a safety drop in case the crane runs out of battery.

Maximum stiffness

The models of Sunlift transfer cranes are characterized by their exceptional rigidity. This is possible thanks to the special design of all its anchor points, which has allowed to eliminate any type of slack.

Very easy to handle

Wide ergonomic handle that allows to position the elbows at 90º for a more comfortable handling of the crane without forcing the wrist and with a large tube diameter (40mm), to grip more comfortably. They are also covered by a layer of paint very pleasant to the touch, easy to clean and hygienic.

Leg opening

The legs are opened and closed pressing the ergonomic pedal with the foot to get a greater or less width of the crane.



Technical specificationss (common in all 4 models)

Batteries: 2 x 12v acid gel Battery capacity: 2.9 Amph Charger input current: 230 v / 50 Hz 0.12 A Charger output current: 28 v 0.5 Amph


SUNLIFT Micro SUNLIFT Mini
Patient maximum weight 130 kg 130 kg
Maximum total length
(with wheels out)
1.110 mm 1.130 mm
Minimum total length
(with wheels inwards)
970 mm 1.065 mm
Max width with closed legs 545 mm 540 mm
Maximum total height (without load) (A) 1,725 mm 1,870 mm
Minimum total height (no load) (B) 1.130 mm 1.280 mm
Maximum height of the hanger (without load) (C) 1,483 mm 1,628 mm
Minimum height of the hanger (without load) 460 mm 513 mm
Turning radius with open legs (D) 1.130 mm 1.240 mm

Open legs: (E)
Maximum width (external)
Maximum width (internal)

870 mm
740 mm
940 mm
810 mm
Closed legs: (F)
Maximum width (external)
Maximum width (internal)
545 mm
465 mm
540 mm
470 mm
Height at the upper edge of the legs 100 mm 100 mm
Minimum free height above ground 20 mm 20 mm
Front wheels 75 mm 75 mm
Rear wheels 100 mm 100 mm
Weight set mast, arm and electronic components 16.6 kg 17,54 kg
Joint weight of the base 13.34 kg 13.6 kg
Weight of batteries 2.76 kg 2.76 kg

SUNLIFT Midi SUNLIFT Major
Patient maximum weight 150 kg 1375 kg
Maximum total length
(with wheels out)
1.225 mm 1,340 mm
Minimum total length
(with wheels inwards)
1,160 mm 1.275 mm
Max width with closed legs 640 mm 650 mm
Maximum total height (without load)(TO) 1,940 mm 2006 mm
Minimum total height (no load) (B) 1,285 mm 1.435 mm
Maximum height of the hanger (without load) (C) 1,688 mm 1.813 mm
Minimum height of the hanger (without load) 555 mm 575 mm
Turning radius with open legs (D) 1.380 mm 1,500 mm

Open legs: (E)
Maximum width (external)
Maximum width (internal)

1.075 mm
980 mm
1,185 mm
1,105 mm
Closed legs: (F)
Maximum width (external)
Maximum width (internal)
640 mm
540 mm
650 mm
520 mm
Height at the upper edge of the legs 100 mm 110 mm
Minimum free height above ground 20 mm 15 mm
Front wheels 75 mm 75 mm
Rear wheels 100 mm 100 mm
Weight set mast, arm and electronic components 17.6 kg 22.75 kg
Joint weight of the base 14.10 kg 18.1 kg
Weight of batteries 2.76 kg 2.76 kg
Sunlift Micro
New product
3 Reviews

-
BUENAS NOHES, LA HEMOS COMPRADO HACE POCOS DIAS PERO PUEDO DECIR Q UES UNA MARAVILLA.100% SATISFECHO
on

Grua
Esta grua es muy practica y manejable para casa,con ella el cuidado de mi padre es mas sencillo y comodo. Recomendable 100%.
on

Grua
La compramos para la residencia y va muy bien. Es comoda y ligera y el arnes es practico y seguro
on
