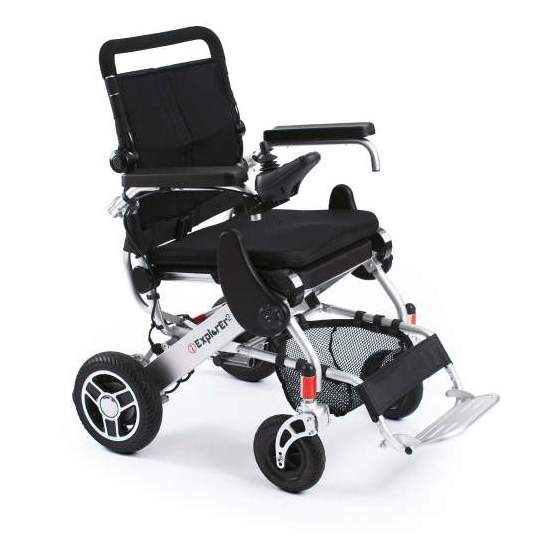

Wheelchair I-Explorer 2
It is the ultralight electric chair of Apex. It is ideal for small spaces and travel with it thanks to its compact dimensions.
Apex offers two models of this wheelchair depending on the seat width: the I-Explorer2 with a seat of 38 x 42 cm and the I-Explorer XL2 with a seat of 41 x 45 cm.
• Folding wheelchair : Folding is instantaneous.
• Chair Easy to carry: Its rear wheels allow it to move like a trolley once folded.
• Lightweight and Robust: Thanks to its removable lithium battery, its weight is 26.5 - 29 kg without battery. Apex offers a 2 year warranty on its aluminum chassis.
• Comfortable: Provides extra comfort to the user due to their armrests and their anatomical cushion and elastic visco.
Technical specifications
I-Explorer2 (I-Explorer XL2)
Dimensions unfolded (length x width x height)
101 x 66 x 96 cm
105 x 69 x 99 cm (I-Explorer XL2)
Dimensions folded (length x width x height)
35 x 66 x 77 cm
44 x 69 x 84 cm (I-Explorer XL2)
Seat dimensions (width x length)
38 x 42 cm
41 x 45 cm (I-Explorer XL2)
Height from floor to seat
49.5 cm
51 cm (I-Explorer XL2)
Maximum supported weight
115 kg
150 kg (I-Explorer XL2)
Weight with batteries
29 kg
33 kg (I-Explorer XL2)
Weight without batteries
26.5 kg
29 kg (I-Explorer XL2)
Maximum speed
6 km / h
Maximum slope
12th
Turning radius
90 cm
100 cm (I-Explorer XL2)
Type of motor
Brushless DC motor. Power 250W
Front wheels
7 "Solid
8 "Pneumatic (I-Explorer XL2)
Rear wheels
10 "Solid
12 "Pneumatic (I-Explorer XL2)
Batteries
2 10Ah (12V + 12V) batteries connected in series
2 24V (20Ah + 20Ah) batteries connected in parallel (I-Explorer XL2)
Warranty
Frame 2 years
Batteries 6 months
Electronic components 1 year
